Copper Pipe Corrosion From Water: Causes and Prevention

Here’s what most articles about copper pipe corrosion get completely backward: they treat it as a plumbing problem when it’s actually a water chemistry problem. Your pipes aren’t failing — your water is attacking them. And the frustrating part is that water can look perfectly clear, taste totally fine, and still be dissolving copper from your pipes every single day. The fix isn’t replacing your pipes. It’s understanding what’s in your water and why it’s aggressive in the first place.

Most homeowners don’t think about this until they notice the blue-green staining around drains or someone mentions elevated copper levels at a routine checkup. By then, the corrosion has often been happening for years. This article is about catching it earlier — and more importantly, understanding the water chemistry driving it so you can actually stop it instead of just watching the stains reappear.

Why Your Water Is Attacking Copper Pipes (And What That Actually Means)

Copper is a remarkably durable metal, but it has a specific weakness: water that sits outside a fairly narrow chemical comfort zone. The EPA’s recommended pH range for drinking water is 6.5 to 8.5, but that range is wider than most people realize. Copper corrosion becomes a real, measurable problem when pH drops below 7.0 — and it accelerates fast below 6.5. Acidic water essentially strips electrons from the copper surface, converting solid metal into dissolved copper ions that travel right into your drinking water and leave deposits in your fixtures.

The mechanism isn’t just about acid, though. Dissolved oxygen, chlorine residual from municipal treatment, and high total dissolved solids (TDS above 500 ppm) all contribute to what water chemists call the Langelier Saturation Index — a measure of whether water is scale-forming (protective) or corrosive (destructive). A slightly negative index means your water is actively hungry for minerals, and it’ll pull them from wherever it can find them, including your pipes. That’s the part most plumbers won’t tell you, because it’s not a pipe issue — it’s a water issue.

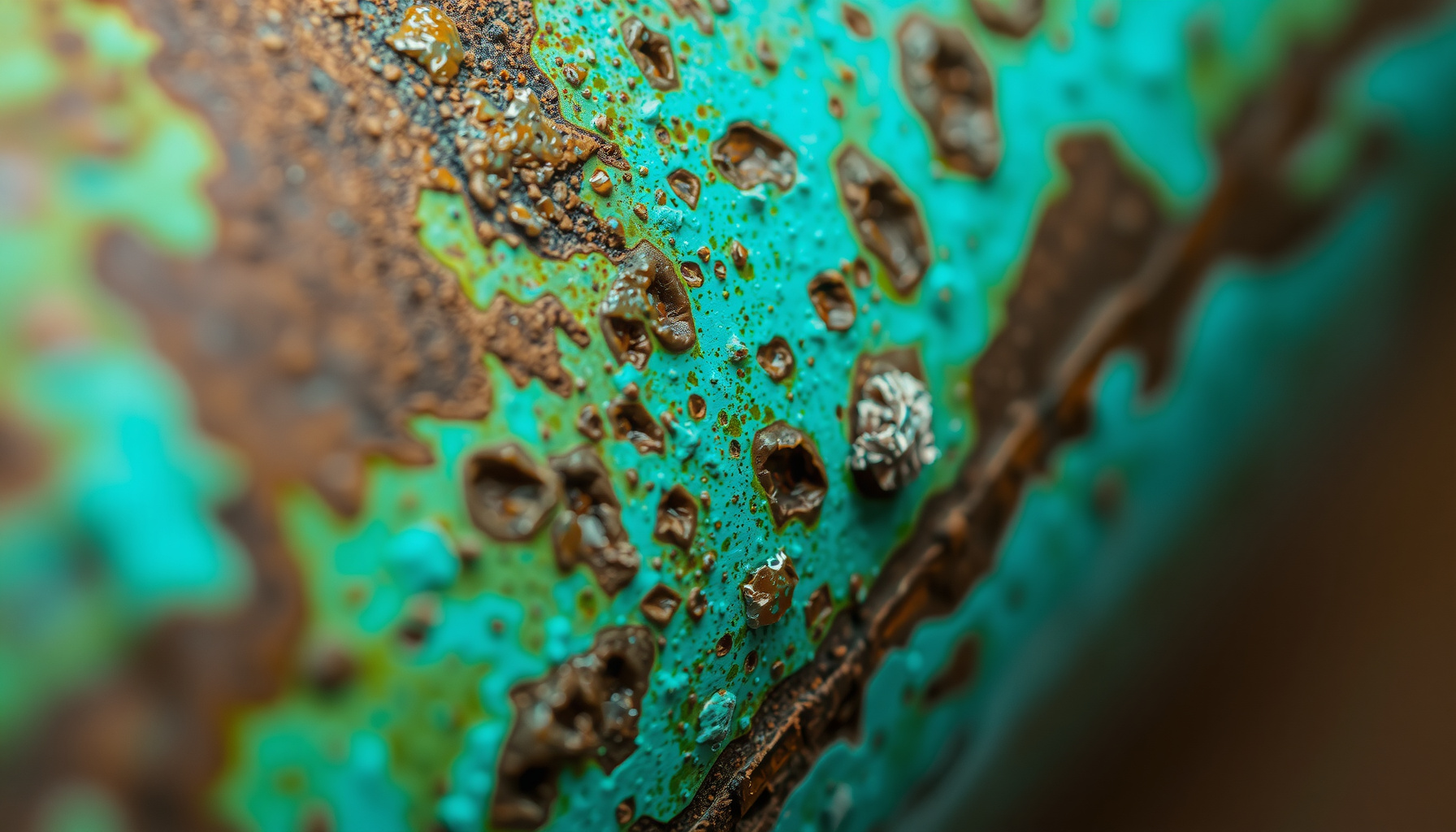

This close-up of corroded copper pipe shows the pitting and blue-green oxidation that’s typical of water-driven corrosion — the pattern and location of the damage can tell you a lot about what’s causing it and where in your system it’s worst.

What’s Actually Causing the Corrosion in Your Specific Home?

Not all copper pipe corrosion looks the same, and that’s actually useful information. There are three distinct corrosion patterns that point to three different root causes. Uniform surface corrosion — that classic greenish patina across the pipe — usually means consistently low pH or high dissolved oxygen throughout your system. Pitting corrosion, which looks like small craters or holes concentrated in specific spots, typically points to something more localized: sediment deposits, bacterial biofilms, or chlorine concentration hot spots near a treatment entry point. Erosion corrosion, which shows up as grooves or thinning on the inside of elbows and fittings, comes from water moving too fast or carrying too much turbulence.

Here’s the counterintuitive fact that most water quality articles completely skip: soft water is often more corrosive than hard water. Hard water, despite all its reputation for causing scale and clogging fixtures, actually deposits a thin layer of calcium carbonate on the inside of copper pipes. That layer acts as a barrier between the metal and the water. Soft water — or water that’s been heavily softened through ion exchange — strips that buffer away, leaving bare copper exposed to whatever chemistry your water happens to have. If you’ve recently installed a water softener and started noticing blue staining in your sinks, that’s likely what’s happening.

“Homeowners almost always focus on the visible symptoms — the staining, the taste, the fixture damage — but the real diagnostic work is in understanding the Langelier Saturation Index of the supply water. A reading below -0.5 tells you the water is measurably aggressive toward metal surfaces, and copper is particularly vulnerable. We’ve seen index values of -1.2 or lower in homes with well water in granite-heavy regions, and those are the cases where you see pipe failure within a decade.”

Dr. Margaret Hollis, Certified Water Treatment Specialist and Environmental Engineer, Clean Water Research Institute

How to Test Your Water Before Spending a Dollar on Fixes

The biggest mistake homeowners make when they discover copper corrosion is skipping the testing phase and going straight to solutions. Buying a neutralizing filter for acidic water won’t help if your real problem is high chlorine concentration or bacterial-driven corrosion. And adding a pH buffer won’t fix erosion corrosion caused by water velocity. Testing first isn’t just a nice-to-have — it’s the only way to know which of the fixes below is actually appropriate for your situation.

For copper pipe corrosion specifically, you want a water test that includes pH, total dissolved solids (TDS), hardness (as calcium carbonate), dissolved oxygen, and copper itself — ideally sampled after water has sat in your pipes for at least six hours, which is called a “first-draw” sample. This gives you the most accurate read of how much copper is actually leaching. The EPA action level for copper is 1.3 mg/L at the tap, but you can see effects on fixtures and taste well below that threshold. If your home uses well water, the scope of what you should test is broader — similar to how well water testing for contaminants like total coliform and E. coli requires a specific sampling protocol to get accurate results, copper leaching tests are only meaningful when you follow proper first-draw collection procedures.

Pro-Tip: When collecting a first-draw water sample for copper testing, don’t run the tap at all before filling the bottle — not even briefly. Any flushing dilutes the sample with fresh supply water and will dramatically underreport how much copper your pipes are actually contributing. Fill the sample container with the very first water that comes out of the tap after six or more hours of no water use.

Which Water Conditions Cause Copper Corrosion (And How Bad Each One Is)

Understanding the specific chemistry behind each corrosion driver helps you prioritize. Not every aggravating factor needs the same response, and some combinations are far more destructive than individual factors alone. Below is a breakdown of the most common water conditions that drive copper corrosion, roughly ordered by severity.

1. Low pH (below 7.0): Acidic water is the most consistent driver of copper corrosion. Every full point drop in pH represents a tenfold increase in acidity, meaning water at pH 6.0 is ten times more corrosive than water at pH 7.0. Well water in regions with granite or sandstone geology often tests in the 5.5–6.5 range without any treatment.
2. High chlorine residual: Municipal water systems maintain chlorine residual to keep the distribution system safe, but chlorine above 2 mg/L at the tap is oxidizing enough to accelerate copper surface breakdown, especially in hot water lines where reactions speed up.
3. Low TDS / soft water: Water with very low mineral content (TDS below 50 ppm) has no scale-forming potential and actively strips the protective carbonate layer from pipe walls. This is why some regions with naturally soft, slightly acidic water have chronic copper corrosion problems despite having otherwise “clean” water.
4. High dissolved oxygen: Oxygen-rich water accelerates the electrochemical reaction that converts copper metal into dissolved copper ions. Water that’s aerated — through turbulent entry at a pressure tank or by sitting in a storage tank — can carry enough dissolved oxygen to measurably increase corrosion rates.
5. Bacterial biofilms (MIC): Microbiologically Influenced Corrosion is underdiagnosed in residential systems. Certain bacteria, particularly sulfate-reducing bacteria, produce corrosive byproducts that attack copper directly and create deep pitting. This type of corrosion is localized, rapid, and often misidentified as a manufacturing defect in the pipe.

One honest nuance worth acknowledging: the interaction between these factors matters as much as the individual values. A water supply at pH 6.8 with low TDS and elevated chlorine will corrode copper dramatically faster than the same pH with higher mineral content and low chlorine. This is why generic corrosion calculators give you a rough estimate at best — your specific water chemistry profile determines the actual risk level.

Water Parameter	Safe Range for Copper Pipes	Corrosion Risk Threshold
pH	7.0 – 8.5	Below 7.0 (high risk below 6.5)
Total Dissolved Solids (TDS)	100 – 500 ppm	Below 50 ppm or above 500 ppm
Chlorine Residual	0.2 – 1.0 mg/L	Above 2.0 mg/L
Copper at Tap (first draw)	Below 0.3 mg/L	EPA action level: 1.3 mg/L

How to Actually Stop Copper Pipe Corrosion (Matched to Your Root Cause)

Once you know what your water chemistry looks like, the treatment options are pretty targeted. The challenge is that most people reach for whichever solution they read about first rather than the one that addresses their specific chemistry. An acid neutralizer filter — which raises pH by passing water through calcite or a calcite/magnesite blend — is the right fix for low-pH corrosion. But if your pH is already fine and your problem is soft, mineral-depleted water, you’d want a remineralization stage instead, which adds controlled amounts of calcium and magnesium back into the water to restore scale-forming potential. These are different pieces of equipment solving different problems.

For homes on municipal water where chlorine is the primary aggressor, a whole-house carbon filtration system rated to NSF/ANSI Standard 42 or Standard 53 can reduce chlorine and chloramine levels significantly before water contacts your pipes. Carbon block filters are particularly effective here. If bacterial-driven corrosion (MIC) is suspected based on the pitting pattern and your test results, the approach is different again — you’re looking at disinfection of the plumbing system, potentially with a UV treatment system at the point of entry, and in some cases, testing the water supply for the specific bacteria responsible. Well water systems especially benefit from periodic broad-spectrum testing, in the same way that testing for radon in well water requires understanding which contaminants are plausible given your local geology before you know what to look for.

Here’s what the treatment options look like by corrosion type:

• Low pH / acidic water: Calcite acid neutralizer filter (raises pH toward 7.0–7.5); for very low pH (below 6.0), a chemical feed pump injecting soda ash is more reliable than a passive neutralizer
• Soft or mineral-depleted water: Remineralization filter or calcite post-filter after a reverse osmosis or softener system; target hardness of 60–120 ppm as calcium carbonate to restore protective scaling potential
• High chlorine from municipal supply: Whole-house carbon filtration (catalytic carbon block for chloramines); rated to NSF/ANSI Standard 42 at minimum
• High TDS / aggressive dissolved solids: Assess the specific ion driving the problem — sulfate and chloride ions are particularly corrosive; water softening or targeted anion exchange may help depending on the profile
• Bacterial / MIC corrosion: UV disinfection system at point of entry, whole-system shock chlorination, followed by retesting to confirm bacterial load reduction

In most homes we’ve tested where copper staining is showing up at multiple fixtures, the culprit is a combination of moderately low pH and either aggressive softening or high chlorine — not a single factor in isolation. That’s worth keeping in mind when you get your test results back, because a single-variable solution might only solve part of the problem.

There’s also the question of what to do about copper that’s already dissolved into your water. Once it’s there, the only way to remove it at the point of use is with a certified filter — reverse osmosis systems certified to NSF/ANSI Standard 58 are effective at reducing dissolved copper, as are some solid block carbon filters rated to Standard 53 for copper reduction. These don’t fix the upstream corrosion problem, but they matter if you have young children or pregnant household members in a home with known elevated copper levels, since the EPA’s action level of 1.3 mg/L is a regulatory trigger, not a health-safe threshold — health effects, particularly gastrointestinal, can appear at lower levels with repeated exposure.

Finally, there’s one plumbing adjustment that’s often overlooked: water temperature and flow velocity. Hot water is significantly more corrosive than cold water — the same water chemistry that’s manageable at 60°F becomes genuinely aggressive at 130°F or above. Most water heaters are set between 120°F and 140°F, which is within a range where the chemistry still works. But if yours is set higher, or if your hot water lines are undersized for your flow rate, you may be compounding a chemistry problem with a physical one. Dropping the heater set point to 120°F and ensuring your pipe diameter is appropriate for actual demand doesn’t cost anything and can meaningfully slow corrosion rates in the hot water side of your system.

Understanding copper pipe corrosion as a water chemistry problem — not a plumbing defect — changes what you do about it. Test your water, read the specific parameters that matter, and match the treatment to the actual cause. The homes that deal with chronic copper issues year after year are almost always the ones treating symptoms (replacing stained fixtures, patching leaking sections) rather than addressing the water itself. Fix the water, and the pipes take care of themselves.

Frequently Asked Questions
