Water Softener Resin Replacement: When and How to Do It

Here’s the thing most articles about water softener resin won’t tell you: the resin in your softener isn’t wearing out the way you think it is. Most homeowners assume resin beads just “get old” and stop working, like a sponge that’s finally used up. But the real reason resin fails — and fails faster than it should — is almost always chemical fouling that’s happening slowly, invisibly, and entirely preventably. By the time your softener is clearly struggling, the damage has usually been compounding for months, sometimes years.

The bottom line: most residential softener resin lasts 10 to 15 years under clean municipal water conditions, but can fail in as few as 3 to 5 years if your water contains iron above 0.3 mg/L, chloramine disinfectants, or manganese deposits. Knowing why resin degrades — not just when to replace it — is what separates homeowners who replace resin once from those who replace it every few years wondering why their softener keeps failing.

What Is Water Softener Resin Actually Doing Inside That Tank?

Softener resin is a bed of tiny cross-linked polystyrene beads — typically sulfonated to carry a negative charge — that attract and hold positively charged calcium and magnesium ions as hard water passes through. This is called ion exchange, and it’s a genuine chemical reaction happening millions of times per second across thousands of square feet of surface area packed into a tank the size of a fire extinguisher. The beads then release those hardness minerals during regeneration when a brine solution flushes them, essentially resetting the beads to do it all over again.

What makes resin degrade isn’t the ion exchange itself — that process is reversible almost indefinitely under ideal conditions. The problem is that real-world water contains things that permanently alter the bead structure: iron that oxidizes and coats the beads, chlorine that breaks down the polymer matrix over time, and manganese that forms a black crust that no amount of salt can dissolve. Each of those contaminants attacks the resin through a completely different mechanism, which is why a single “resin cleaner” rarely solves the problem once fouling is advanced.

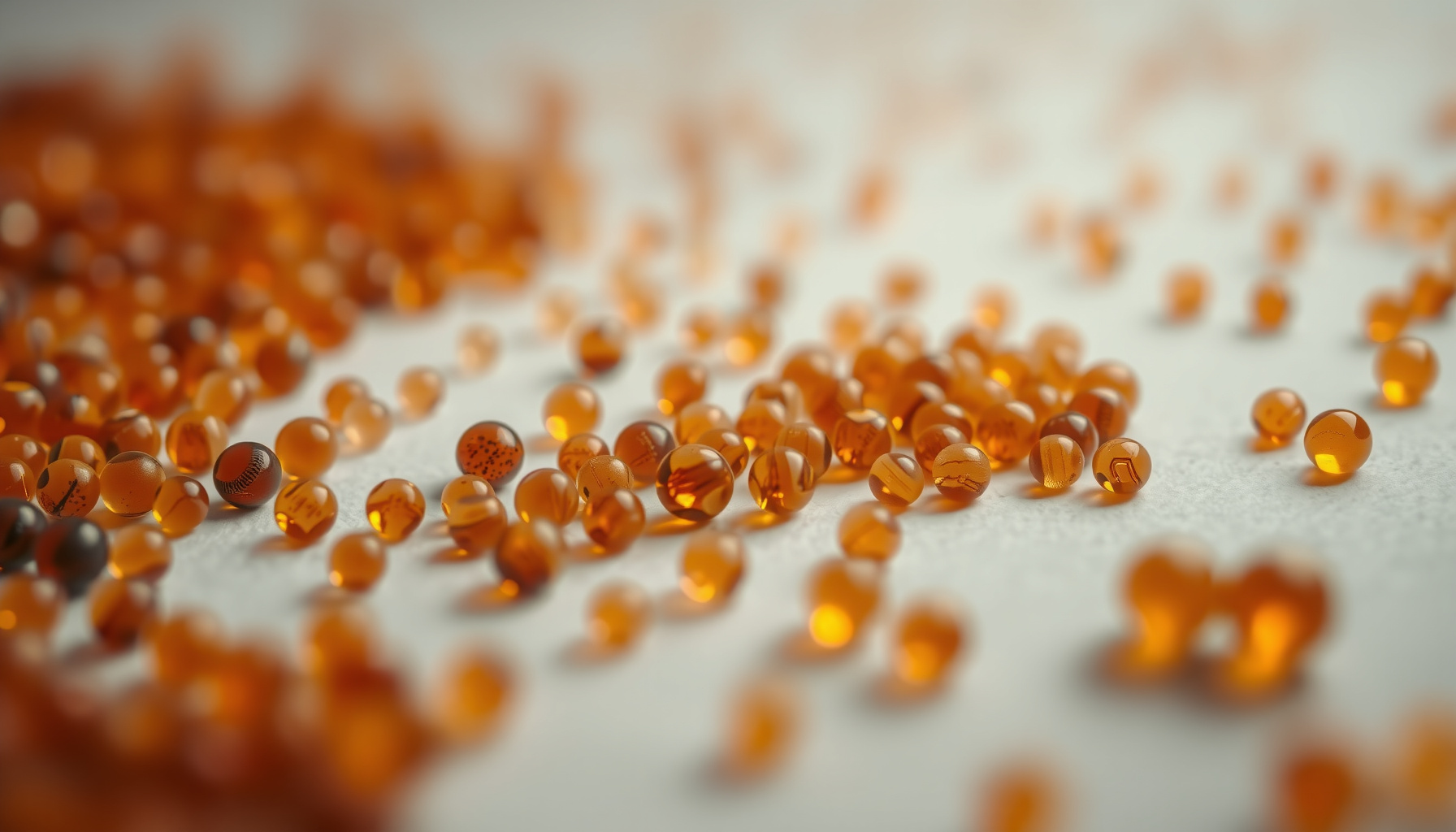

This close-up view of fouled resin beads shows the iron and mineral coating that builds up on the bead surface over time — understanding what this buildup looks like helps you recognize whether your resin needs cleaning or has already crossed the line into full replacement territory.

Why Does Resin Fail Years Earlier Than It Should?

Chlorine is the most underappreciated enemy of softener resin in municipal water. Most city water is treated with free chlorine or chloramines at concentrations between 0.5 and 4 mg/L — within EPA guidelines, perfectly safe to drink, but genuinely destructive to polystyrene resin beads over long exposure. Chlorine oxidizes the polymer chains that hold the bead structure together, causing beads to crack, fragment, and eventually turn into a fine grit that flushes into your plumbing. Chloramines — used in many cities because they’re more stable than free chlorine — are actually worse for resin longevity because they penetrate the bead more deeply before breaking it down.

Iron fouling works differently. When iron above 0.3 mg/L enters the softener, the beads can exchange it just like calcium — but when those iron ions oxidize inside the resin bed (which happens readily in the presence of oxygen or chlorine), they form insoluble iron compounds that physically clog the pores of the bead. Regeneration with salt brine doesn’t remove oxidized iron. That fouled resin gradually loses capacity, and the softener starts allowing hardness minerals to slip through even with a full salt tank and a correctly set regeneration schedule. If you want a deeper look at how iron specifically interacts with softener systems, the article Does a Water Softener Remove Iron From Well Water? breaks down the chemistry and the practical limits in detail.

How Do You Actually Know It’s Time to Replace the Resin?

Most homeowners don’t think about their resin until they notice scale building up on faucets or their skin feels tight after showering — by which point the resin capacity has usually dropped to 40% or less of its original level. The tricky part is that a failing resin bed doesn’t announce itself suddenly; it degrades gradually, and a softener on a timer-based regeneration schedule will just regenerate more often to compensate, quietly burning through extra salt for months before the system finally stops keeping up.

There are four reliable diagnostic signals that point specifically to resin failure rather than other softener problems like a failed valve, salt bridge, or incorrect settings. Run through these in order before spending money on resin, because resin replacement is not cheap and misdiagnosis is common:

1. Hardness test fails immediately after regeneration. Test your water within two hours of a completed regeneration cycle. If hardness reads above 1 gpg (grains per gallon) right after the brine rinse, the resin bed has lost significant capacity — a healthy bed should deliver near-zero hardness immediately post-regen.
2. Fine resin particles appear in your water. Check your aerator screens and toilet tank. Small amber or yellowish beads or fine grit collecting in these spots means beads are fragmenting — typically caused by chlorine degradation or mechanical fracturing from freeze-thaw cycles.
3. Salt usage has climbed without a change in water use. If you’re going through 20% to 30% more salt than you used to for the same household, the regeneration efficiency has dropped — the system is compensating for reduced resin capacity by regenerating more frequently or at higher brine concentrations.
4. Resin cleaner treatment shows no improvement. A good resin cleaner with sodium hydrosulfite (for iron fouling) or a citric acid-based formula (for mineral scaling) should noticeably improve performance within two or three regeneration cycles. If there’s no measurable difference in post-regen hardness after treatment, the fouling is physical and chemical damage — not something a cleaner can reverse.
5. Resin bed age exceeds 10 years on chlorinated water. This isn’t a strict rule — some resin lasts 15 to 20 years on well water with low iron — but chloramine-treated municipal water accelerates polymer breakdown significantly. If your system has been running on city water for over a decade without a resin check, it’s worth testing capacity even if you haven’t noticed obvious problems yet.

Pro-Tip: Buy a simple hardness test kit (strips or a liquid drop kit) and test your softened water immediately after a regeneration cycle and then again 24 hours later. The difference between those two readings tells you exactly how fast your resin is exhausting — if hardness climbs by more than 3 gpg within 24 hours at your normal water usage, your resin bed capacity is significantly compromised.

What Does Resin Replacement Actually Involve — and What Can Go Wrong?

The mechanical process of replacing resin is not particularly complicated, but it has a few steps where homeowners routinely make mistakes that either damage the new resin immediately or leave the system performing worse than before. The resin tank has to be fully drained and flushed, the distributor tube (the central plastic tube that distributes water through the bed) has to be inspected and often replaced, and the gravel underbed — if your system uses one — has to be checked for fouling before the new resin goes in. Skipping any of these steps is how people end up replacing resin twice.

Here’s what the replacement process looks like, and the specific points where things go sideways:

• Resin type matters more than most people realize. Standard 8% cross-linked resin is fine for most municipal water. If your water contains chloramine or iron above 0.3 mg/L, you should use 10% cross-linked resin — it’s harder, more resistant to oxidation, and worth the extra cost. Some well-water situations with iron above 1.0 mg/L call for a specialty iron-removal resin entirely.
• The distributor tube O-ring is almost always damaged during removal. Have a replacement O-ring for your specific model on hand before you start. A cracked or deformed O-ring allows untreated water to bypass the resin bed entirely — your hardness tests will fail immediately and you’ll assume the new resin is bad when the problem is a $2 rubber ring.
• Don’t add salt immediately after loading new resin. New resin beads need to be hydrated and rinsed before first regeneration. Run the system through a manual regeneration cycle without salt first to flush out any fines (tiny bead fragments from manufacturing), then add salt and run a second cycle to properly charge the bed with sodium ions.
• The resin volume has to match your tank size exactly. Too little resin and you’ll get channeling — water finding paths of least resistance through the bed and bypassing much of the exchange capacity. A standard 9-inch by 48-inch tank holds approximately 1.0 cubic foot of resin; a 10-inch by 54-inch tank holds 1.5 cubic feet. Using the wrong amount voids most of the benefit of the replacement.
• Dispose of old resin carefully. Spent resin that’s been exchanging calcium, magnesium, and potentially iron and manganese for years is considered a solid waste — not a hazardous one in most US states, but it shouldn’t go directly into a storm drain or waterway. Check your local municipality’s guidelines; most allow disposal with regular solid waste if bagged.

“The single most common mistake I see during DIY resin replacement is failing to account for the cross-link percentage of the replacement resin. Homeowners will buy whatever’s cheapest without checking whether their water chemistry — especially chloramine content or iron levels — demands a more durable bead. You can install perfectly good resin and have it fail in two to three years simply because the cross-link density wasn’t appropriate for the incoming water. A 10% cross-linked resin costs maybe 15 to 20 percent more than standard, but it can double or triple the service life in aggressive water conditions.”

Dr. Marcus Hale, Certified Water Treatment Specialist (WQA), 20+ years in residential and commercial water systems

How Does Resin Replacement Compare to Just Buying a New Softener?

This is the question people don’t ask often enough, and the honest answer depends on factors that have nothing to do with the resin itself. Resin is the working component of a softener, but the control valve — the mechanical brain that manages regeneration cycles, brine draw, and flow rates — has its own lifespan and failure modes. If your softener is already 12 or more years old and the resin needs replacement, you should seriously evaluate whether the control valve is also approaching end of life before spending $80 to $150 on resin plus several hours of labor.

Here’s a practical comparison to help you think through that decision:

Scenario	Resin Replacement Cost	New Softener Cost	Better Option
Softener under 8 years old, valve working correctly	$80–$150 DIY / $250–$400 with labor	$600–$1,500 installed	Replace resin
Softener 10–15 years old, valve showing issues	$80–$150 resin + $150–$300 valve repair	$600–$1,500 installed	New softener likely better value
Softener over 15 years old, any major component failing	$80–$150 resin + uncertain repair costs	$600–$1,500 installed	New softener strongly recommended

There’s also a performance ceiling worth considering. Older softeners — especially timer-based systems rather than demand-initiated systems — use significantly more salt and water per regeneration cycle than modern units. Replacing resin in a 15-year-old timer softener brings the resin back to full capacity but does nothing for the inefficiency of the control valve programming. If salt cost is a concern, a modern demand-initiated softener can reduce salt consumption by 30% to 50% compared to older timer-based systems, which over several years more than offsets the cost difference. It’s the same logic that applies to some whole-home water treatment decisions — sometimes the right fix is optimizing the whole system rather than replacing just one component.

One honest nuance here: if your softener is a well-known brand with parts readily available and the valve is genuinely in good shape, resin replacement absolutely makes sense even on an older unit. The framework above is a guide, not a rule — a 12-year-old Fleck 5600SXT with a healthy valve and a fouled resin bed is a perfect candidate for resin-only replacement. A 12-year-old no-name unit with plastic valve components showing wear is a different calculation entirely.

Whatever direction you go, the water leaving your home’s softener — and ultimately your drinking water — deserves some thought beyond just hardness. Softeners don’t remove chlorine, nitrates, or dissolved organic contaminants. If your household relies on softened water as its primary source without any additional filtration downstream, that’s worth revisiting when you’re already evaluating your system.

Resin replacement is one of those home maintenance tasks that rewards the homeowner who understands what’s actually happening inside the tank — not just the one who replaces parts on a schedule and hopes for the best. Test your water, match your resin type to your actual water chemistry, and treat the control valve as a separate system with its own health to monitor. Do that, and a single resin replacement should carry your softener through another decade of genuinely soft water.
